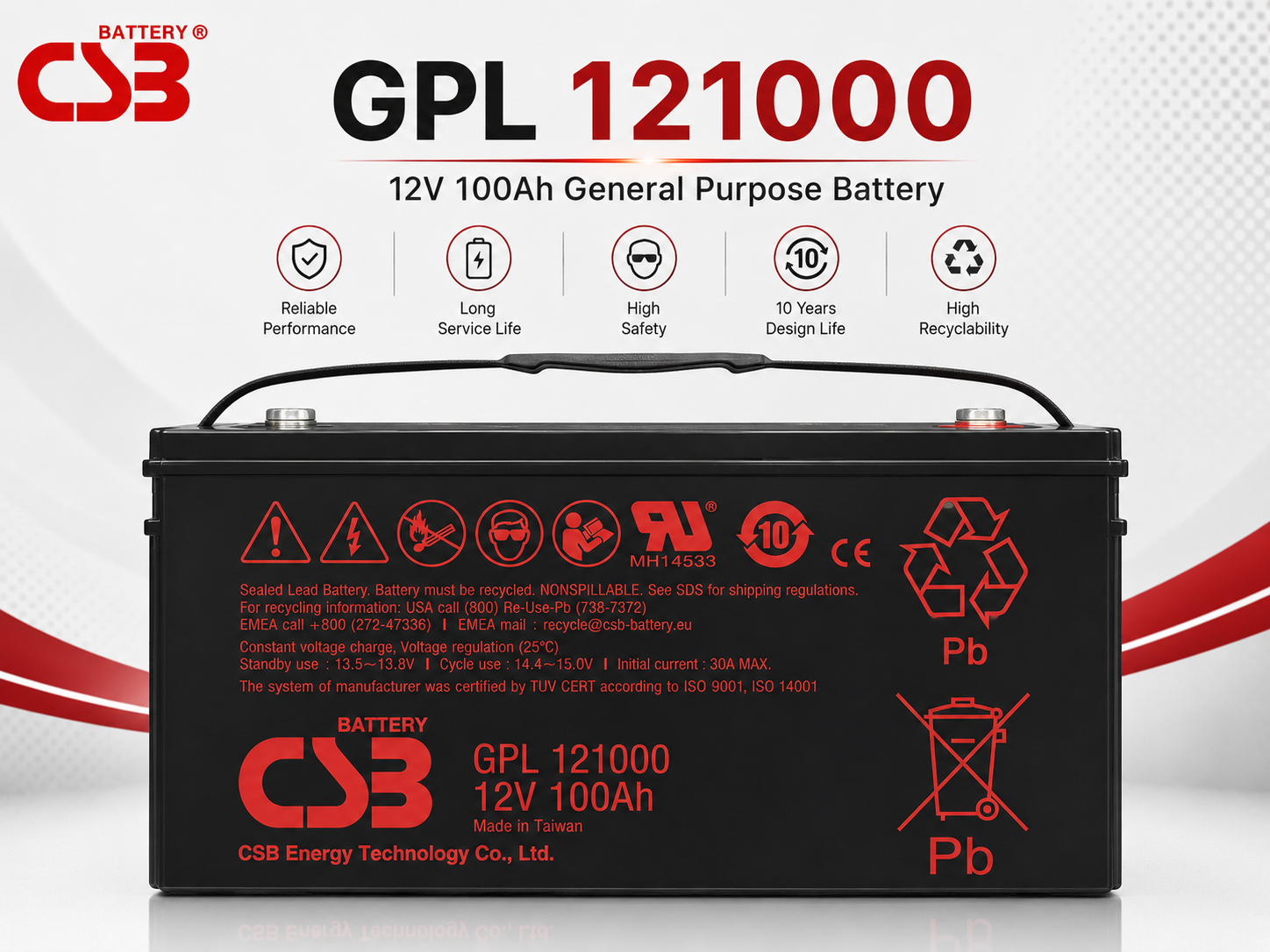

CSB GPL 121000 12V 100Ah Long-Life Standby VRLA AGM Battery
CSB GPL 121000 (12V 100Ah) Long-Life Premium Standby VRLA AGM Battery
The GPL Series (General Purpose Long-life) is designed for superior high-capacity efficiency and extended service life in critical backup applications.
Key Features:
Extended Standby Service Life: Features high-grade thick plates and advanced lead-calcium-tin grids to deliver up to 10 years of standby service life or more than 260 cycles at 100% Depth of Discharge (DOD).
Maintenance-Free & Non-Spillable: Valve Regulated Lead Acid (VRLA) design completely eliminates watering requirements.
Its heavy-duty sealed structure allows safe operational use in multiple orientations. Low Self-Discharge: Highly stable plate formulations minimize self-discharge, allowing safe, reliable storage of up to 6 months at 25°C before requiring a refresh charge.
Certified Quality: Manufactured in strict alignment with ISO 9001, ISO 14001, and UL1989 safety regulations to guarantee maximum dependability.
Applications:
High-capacity Uninterruptible Power Supplies (UPS), central data centers, and corporate server backbones.
Solar power installations, wind energy storage, and off-grid power grids.
Telecommunication exchanges, network base stations, and electrical substations.
Industrial automated machinery, heavy emergency lighting control setups, and medical emergency systems.
Technical Specifications:
Nominal Voltage: 12V
Nominal Capacity: 100Ah @ 20hr-rate
Weight: Approx. 33.50 kg (73.83 lbs)
Max. Discharge Current: 800A (5 sec)
Terminal Type: I2 lead alloy recessed terminal (Accepts M6/M8 bolts)
Dimensions: 343.0mm (L) × 170.0mm (W) × 213.9mm (H) [Total Height: 216.9mm]
