MT-600+ Smart Battery Charger/Tester – Fast, Safe & Universal Charging
MT-600+ Multi-Funtion Smart battery Charger/| Made in Taiwan
Overview
The MT600+ Multifunction Battery Tester & Charger is a versatile and intelligent solution designed to manage, test, and maintain 6V and 12V lead-acid batteries. Suitable for scooters, motorcycles, and cars, it combines advanced automatic pulse charging technology with accurate battery and vehicle system diagnostics.
Key Features:
-
Wide Battery Compatibility

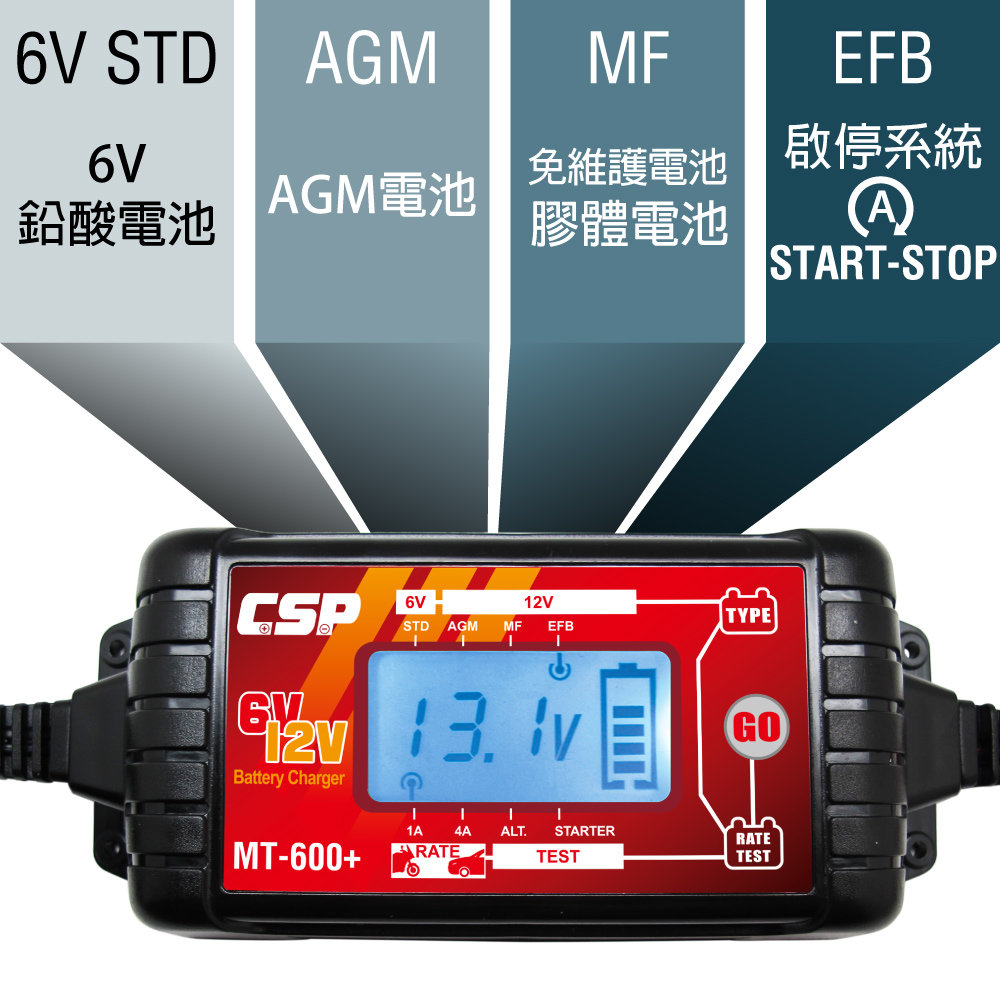

Supports 6V and 12V lead-acid batteries including Water-Filled, Maintenance-Free (MF), AGM, and EFB types. -
Battery Condition Diagnosis
Tests battery status to determine whether charging is required, the battery is usable, or replacement is recommended. -
Alternator & Starter Testing
Accurately measures alternator charging voltage and starter system voltage to evaluate vehicle electrical health. -
Smart Automatic Charging
Multi-stage, fully automatic pulse charging optimizes charging efficiency and battery lifespan. -
Comprehensive Safety Protections
Built-in protection against overcharge, short circuit, overheating, and sparks for safe operation. -

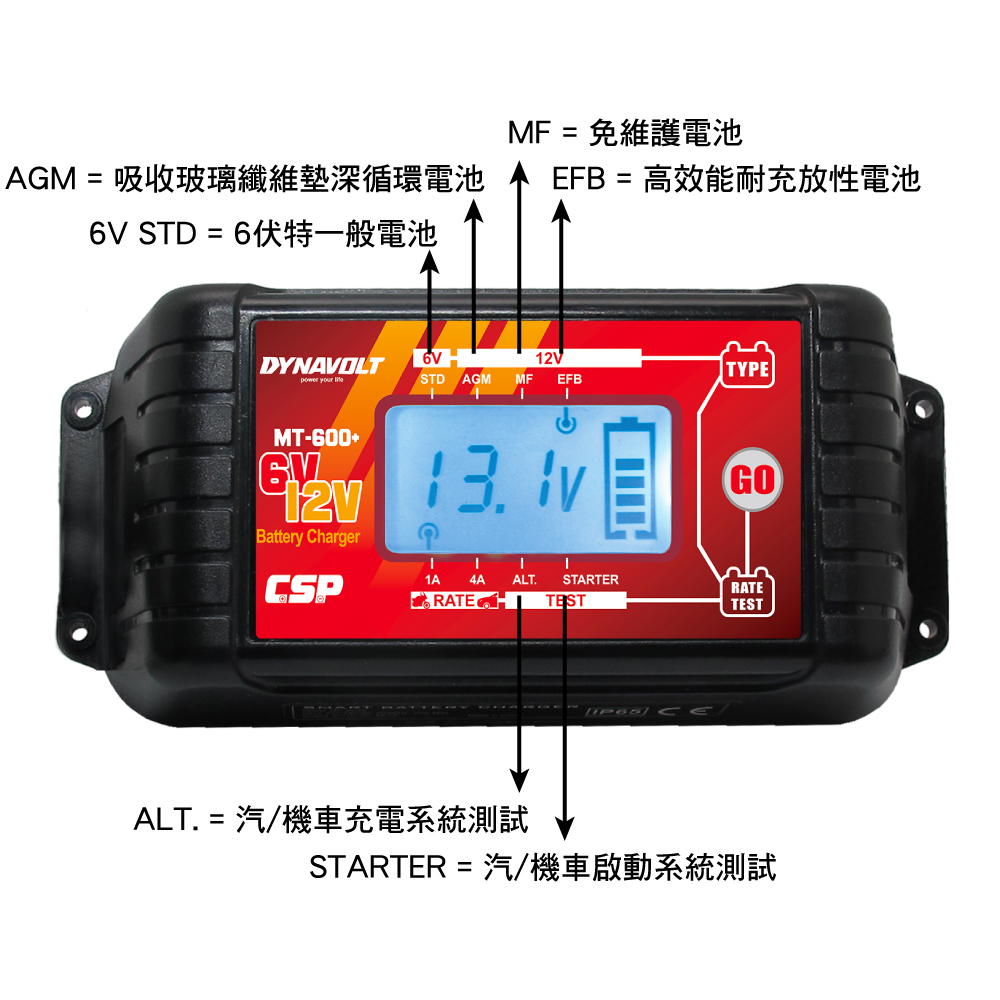

Clear LCD Display
Displays real-time battery voltage, charging current, and charging progress. -
User-Friendly Interface
Simple three-button control allows easy mode selection and operation. -

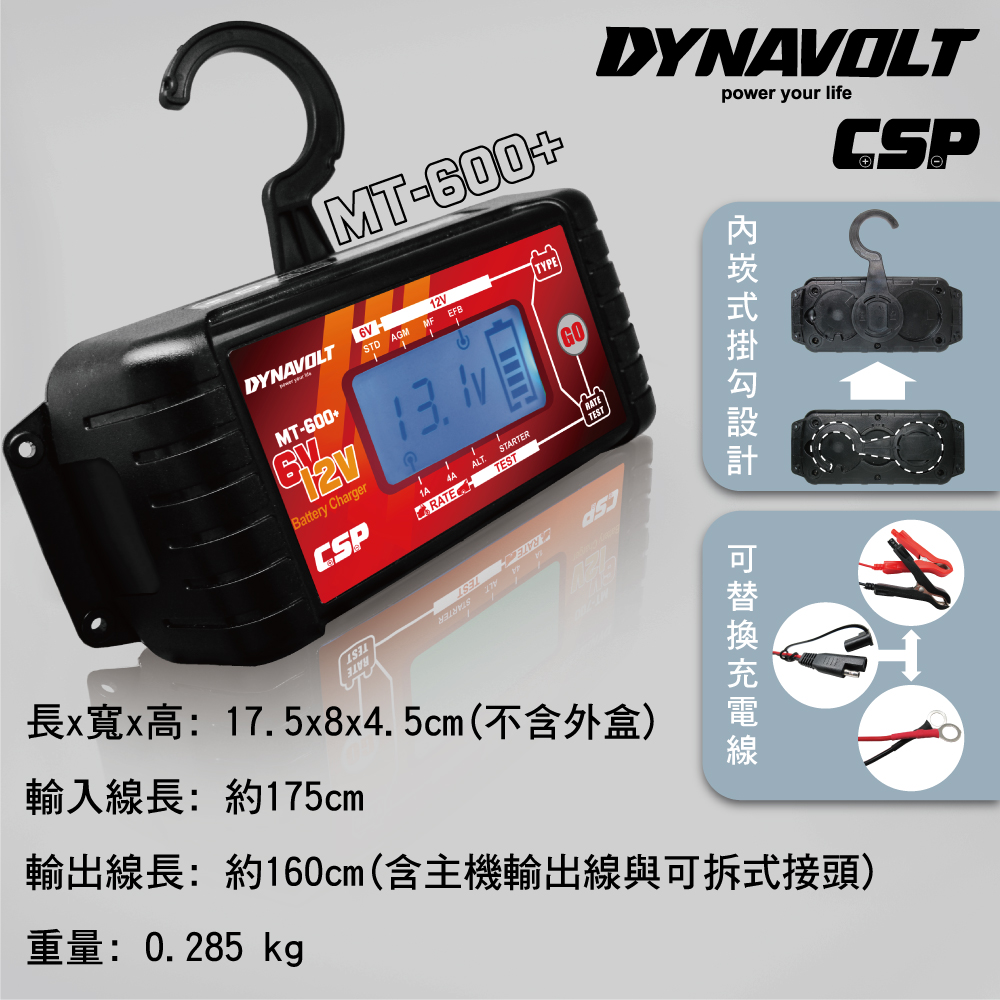

Portable & Practical Design
Compact, lightweight body with a concealed hanging hook for convenient use during charging. -

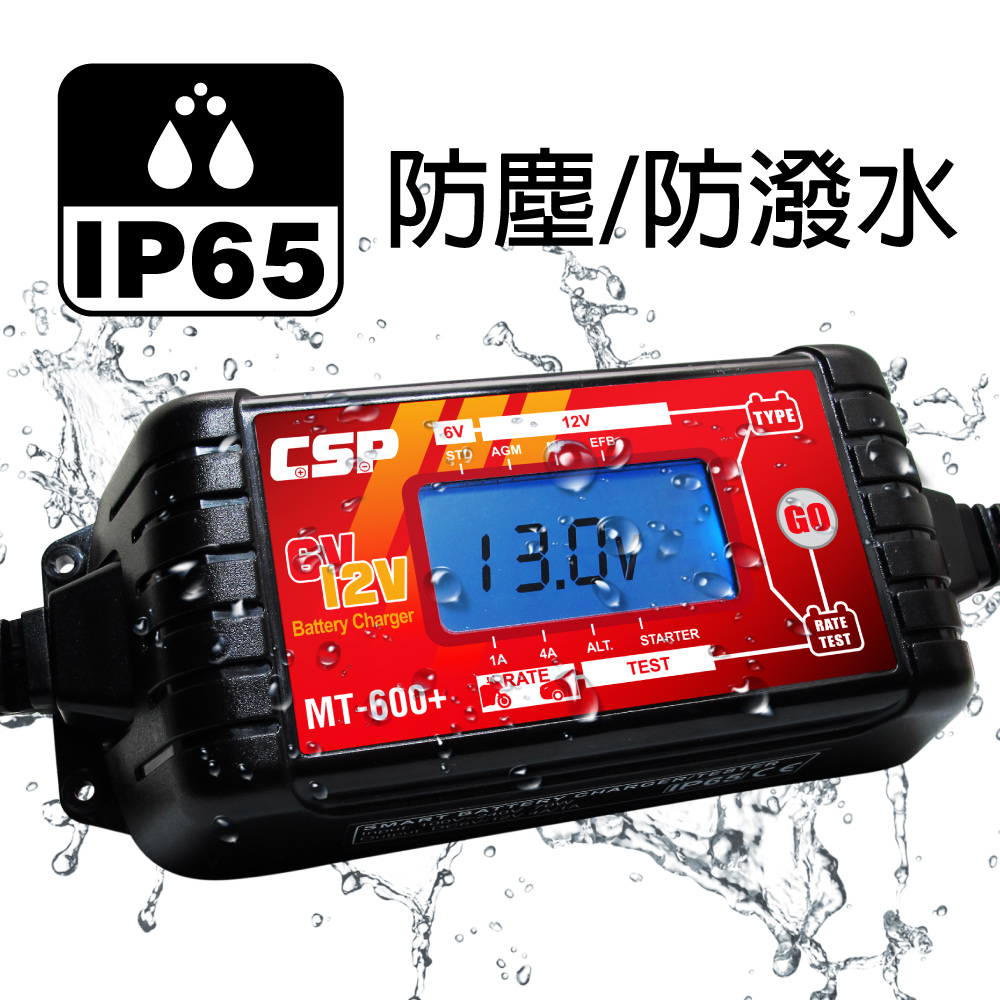

IP65 Protection Rating
Dust-tight and protected against low-pressure water jets, suitable for indoor and outdoor environments.
Specifications:
Input Voltage: 110–240VAC, 50/60 Hz
-
Output Power: 70W maximum
-
Charging Voltage: 7.2VDC (STD), 14.4V / 14.7V / 15.5VDC (AGM / MF / EFB)
-
Charging Current: 1A / 4A (selectable)
-
Charger Type: Multi-stage, fully automatic, pulse charging
-
Battery Type: 6V & 12V lead-acid (Water-Filled, MF, AGM, EFB)
-
Battery Capacity: 1.2Ah – 120Ah
-
Waterproof Rating: IP65
-
Dimensions: 171 × 71 × 44 mm
-
Weight: Approx. 0.285 kg
-
Display: LCD digital display
Functions: Battery test, alternator test, starter test
How It Works:
1.
Connect the charger to a power outlet.
2. Attach
the battery clamps: red to the positive
terminal (+), black to the negative terminal (–).
3. Select
battery type using the MODE button and choose
charging current using the RATE button. If unsure, select MF mode.
4.
Press
GO to start charging.
5. The LCD display shows charging voltage and current, and
the charger automatically stops when the battery is fully charged.
The MT600+ intelligently
adjusts the charging process based on battery condition while continuously
monitoring safety parameters.
Why Choose MT600+ from CSP Battery?
-
Combines battery charging and testing in one compact device
-
Supports both 6V and 12V batteries
-
Helps prevent unexpected battery failure through early diagnosis
-
Safe, automatic operation suitable for daily use
-
Compact, lightweight, and IP65-rated for flexible environments
-
Backed by CSP Battery’s trusted quality and engineering
Frequently Asked Questions (FAQ)
Q1: What batteries are compatible with the MT600+?
It supports 6V and 12V lead-acid batteries, including Water-Filled, MF, AGM, and EFB types.
Q2: Can it test my vehicle’s alternator and starter?
Yes. The MT600+ includes alternator charging voltage testing and starter voltage testing.
Q3: Is it safe to leave the charger connected?
Yes. The automatic charging system and built-in protections prevent overcharging and damage.
Q4: Can it be used outdoors?
Yes. The IP65 rating protects against dust and low-pressure water jets.
Q5: What battery sizes can it handle?
It supports batteries from 1.2Ah to 120Ah.
The MT600+ Multifunction Battery Tester & Smart Charger is an all-in-one solution for charging and diagnosing 6V and 12V lead-acid batteries. Featuring automatic pulse charging, battery health diagnostics, alternator and starter testing, and IP65 durability, it is ideal for scooters, motorcycles, cars, workshops, and home users seeking safety, accuracy, and convenience。
Note
It is normal for the battery voltage to temporarily drop below 9.6V during engine startup. If the voltage does not recover above this threshold, the battery may be in poor condition due to age, low charge, or other electrical issues. Always check battery health and recharge or replace if needed.
