Multifunctional Smart Battery Charger

6V/12V Battery Charger

Multifunctional Smart Battery Charger

Compatc Design

Safe and Reliable

Digital Display

 Overview

The MT700 Smart Battery Charger is a multifunctional device designed to charge and test 6V and 12V batteries used in scooters, motorcycles, and cars. With advanced testing capabilities and compatibility with various battery types, including lead-acid and LiFePO4 (Lithium) , it offers an efficient and reliable solution for battery maintenance. Its compact size, IP65 waterproof rating, and intuitive interface make it ideal for both professional and home us

Key Features

²   Universal Battery Compatibility: Supports 6V Lead-Acid, 12V LiFePO4 (Lithium), MF, GEL, and Start-Stop Lead-Acid batteries.

²   Alternator & Starter Tester: Precisely tests alternator charging voltage and detects starter voltage drop during engine start.

²   Battery Health Diagnosis: Identifies battery condition—usable, needs charging, or needs replacement.

²   Advanced Safety Protections: Built-in protection against overcharging, overheating, short circuits, and sparking.

²   Clear LCD Display: Real-time updates on voltage, current, and charging progress.

²   Simple Three-Button Operation: Easy to use—choose battery type, current, and start.

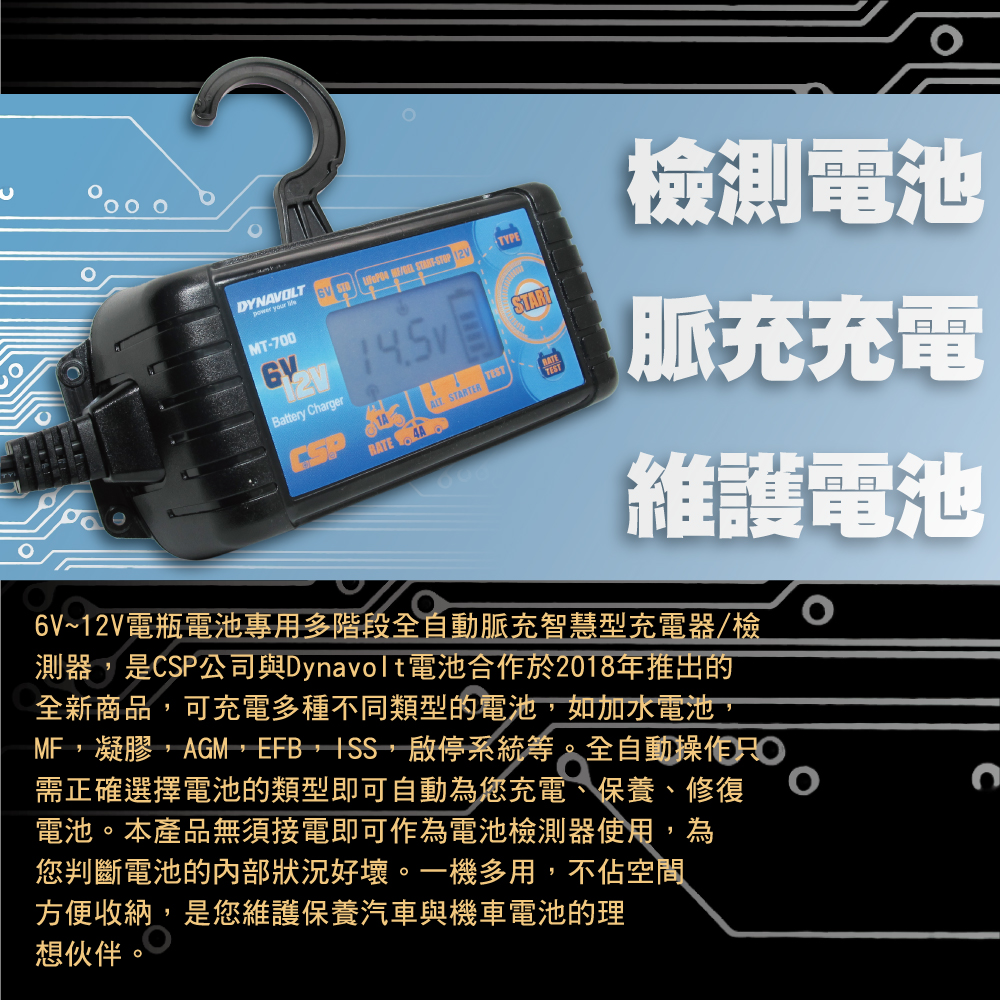

²   Compact & Portable: Lightweight with a concealed hook for easy hanging during use.

²   IP65 Waterproof & Dustproof: Suitable for rugged outdoor environments.

Specifications

• Input Voltage: 110–240VAC, 50/60Hz
• Output Power: Max 70W
• Charging Voltage:
• 7.2VDC (Standard Lead-Acid)
• 14.4V / 14.7V / 15.5VDC (Lithium / MF / Start-stop)
• Charging Current: 1A / 4A

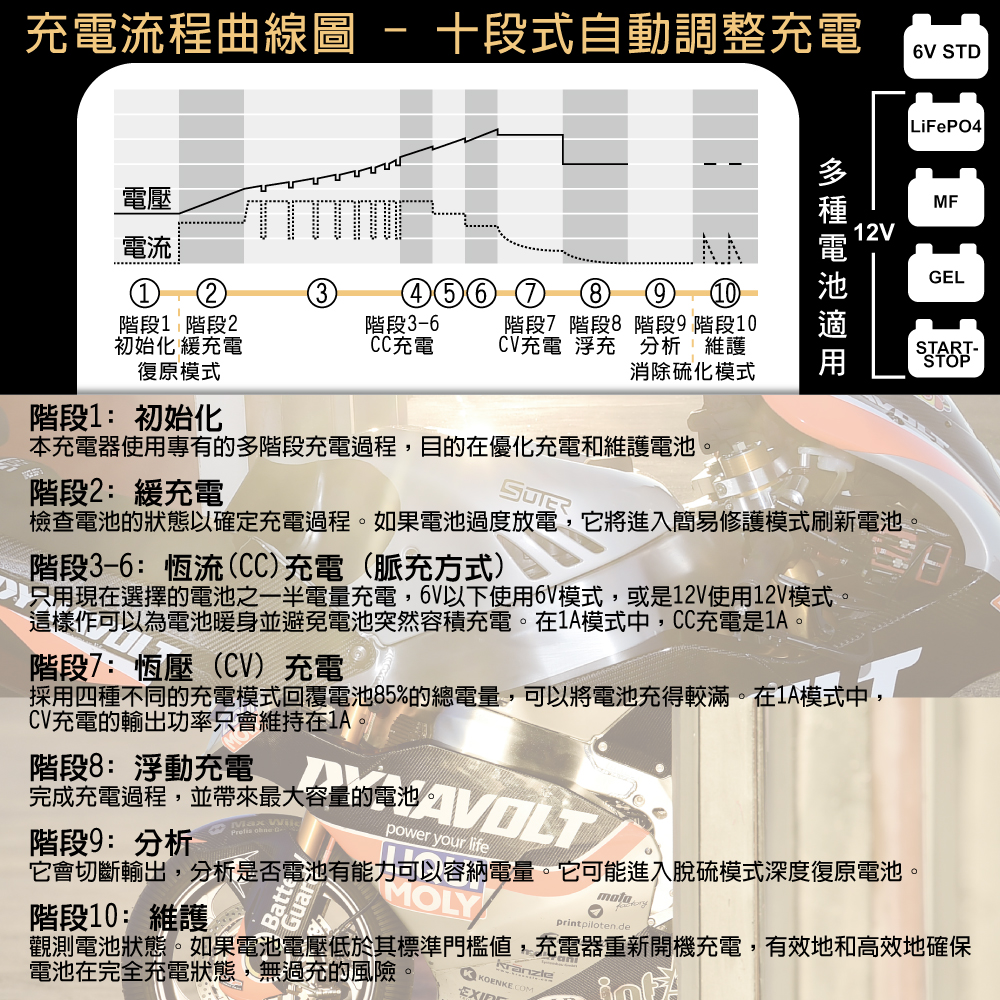

• Charging Type: Multi-stage, fully automatic, pulse charging
• Battery Types Supported: 6V and 12V Lead-Acid (Water-filled, MF, AGM, EFB)
• Battery Capacity: 1.2Ah – 120Ah
• Waterproof Rating: IP65

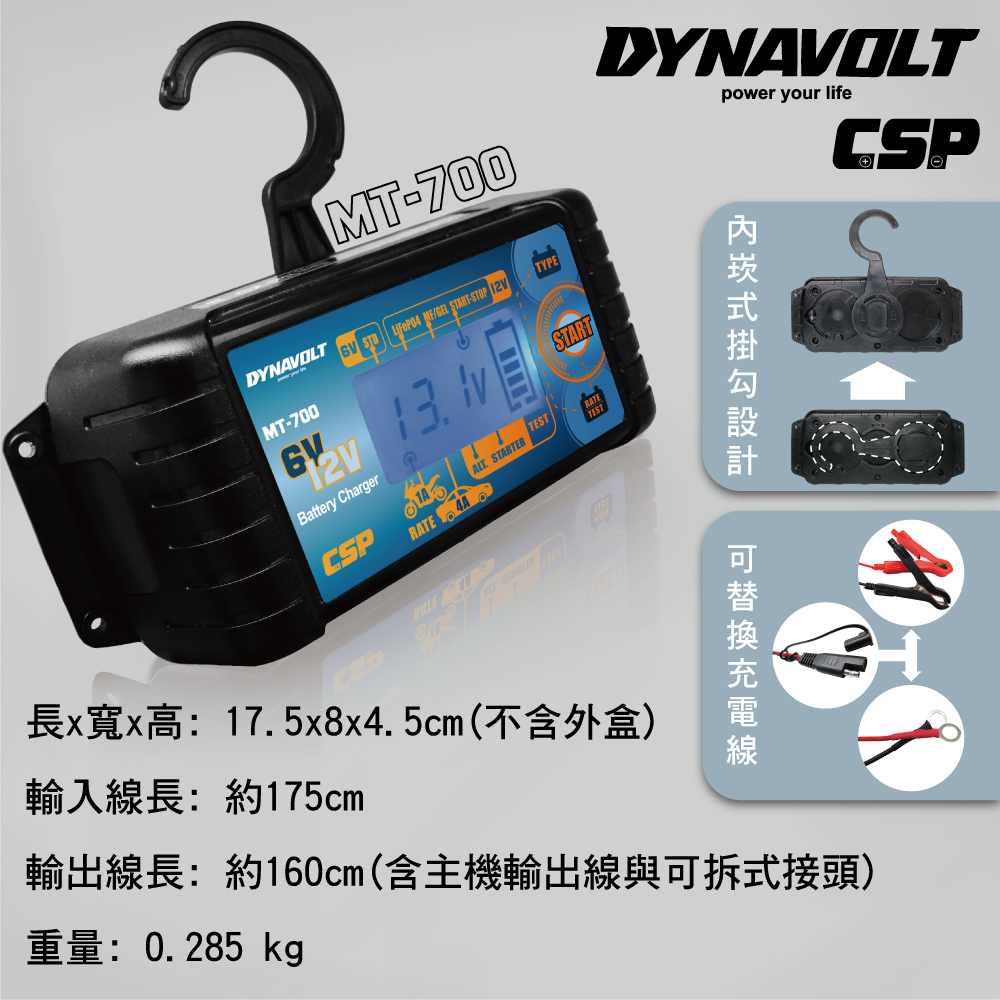

• Size: 171 x 71 x 44 mm (excluding wires)
• Weight: Approximately 0.285 kg

Applications

The MT700 is perfect for:

• Daily battery maintenance of scooters, motorcycles, and cars
• Automotive garages and repair shops
• DIY vehicle owners and mechanics
• Quick alternator and starter diagnosis at home or on the go

User Instructions

1. Connect the charger to a power outlet.
2. Attach the clamps:
• Red to the positive (+) battery terminal
• Black to the negative (–) battery terminal

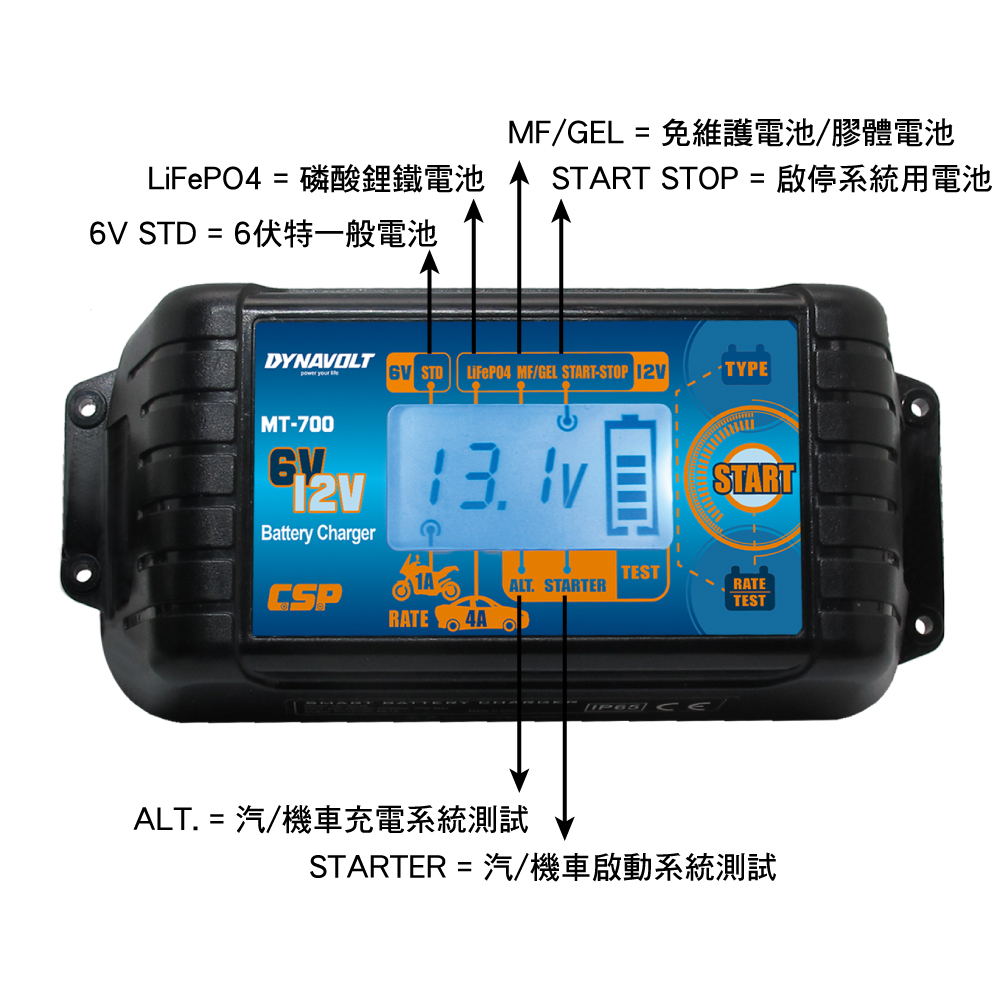

3. Select the battery type using the [MODE] button.
4. Choose the charging current with the [RATE] button. (If unsure, use MF mode.)
5. Press [GO] to begin charging.
6. Monitor the LCD display for voltage and current levels. Charging will automatically stop once the battery is full.

Important Notes

• A brief voltage drop below 12V during engine startup is normal, but it should not go below 9.6V.
• If the voltage falls under 9.6V, the battery might be weak, undercharged, or nearing the end of its life.
• Charge or replace the battery as necessary to maintain optimal vehicle performance.

Related Products

• MT-600+ – Compact Tester/Charger
• MT-1200 – High-Power Multi-Function Charger

What's Included

MT-700 Charger Unit, Grounded Power Cord, User Manual
