Stable Power Supply

Industrial grade cable and connector

High Load capacity

Smar Power Management

Advanced Cooling Fan and digital display

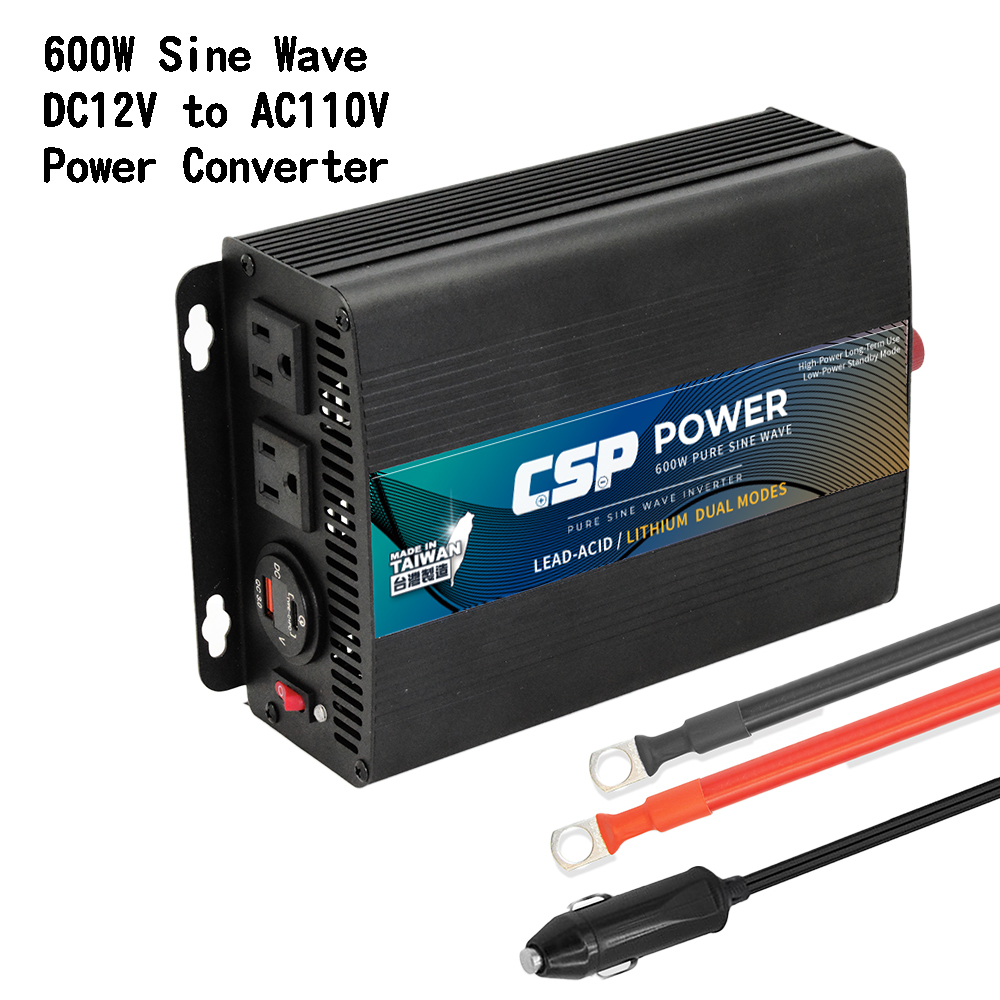

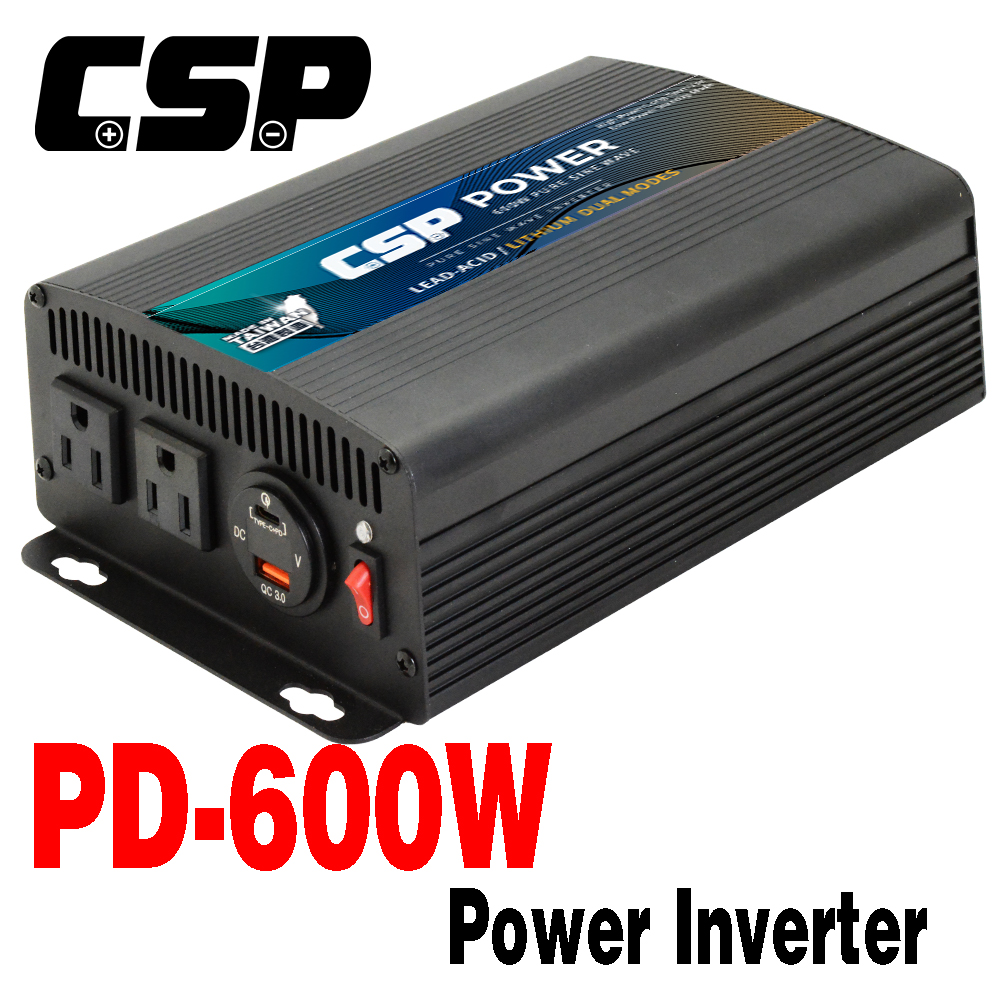

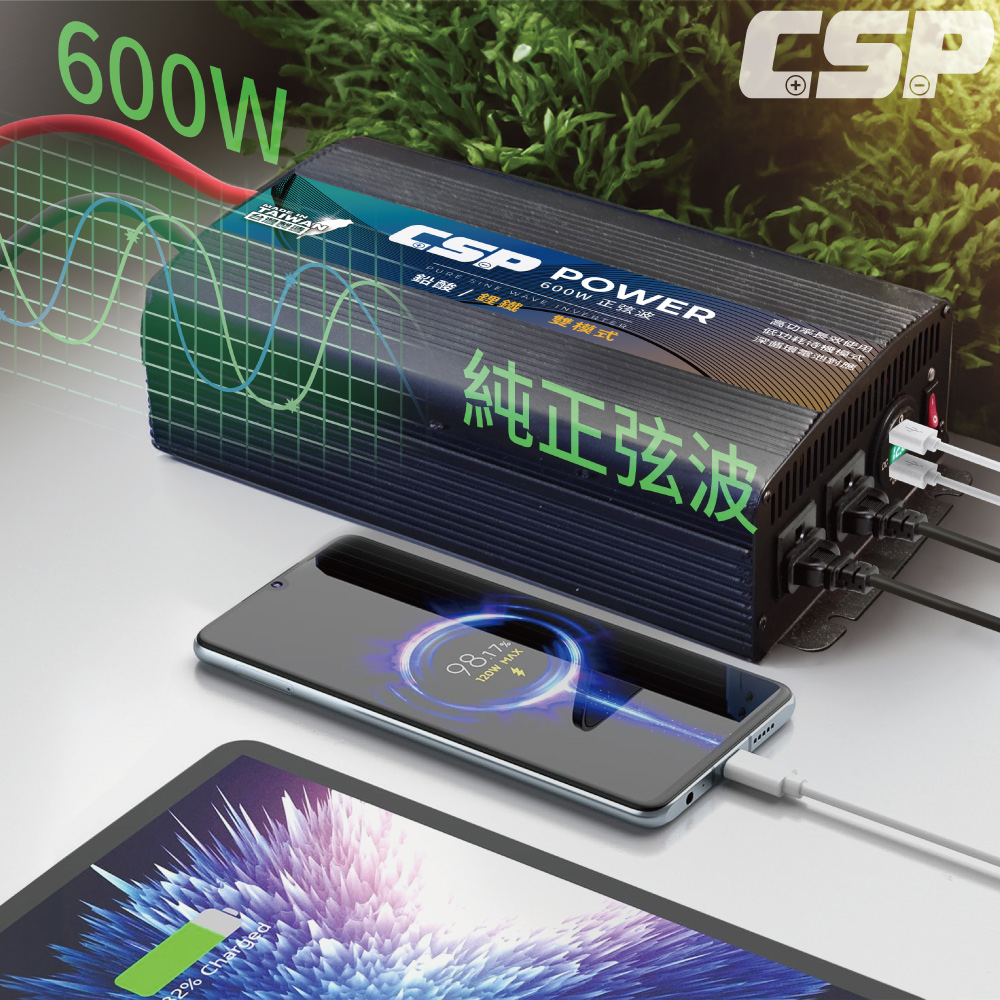

 CSP PD-600W DC12V to AC 110V pure sine wave power Inverter

Product description: CSP PD-600W DC12V to AC 110V pure sine wave power is perfect for providing reliable AC power to electronic equipment. When connecting with AC, the inverter charger can not only bypass the AC power. With high-efficiency output ranging from 600W and a compact aluminum design, we provide the best value to the users. With inverting DC to AC power, the user can use to continuous power supply. To home appliances users, this is also the perfect to use the home appliances equipment under 600w.

Experience the freedom of staying connected and powered up wherever you go with our CSP PD 600W DC12V inverter. Embrace versatility, reliability, and convenience – all in one compact package

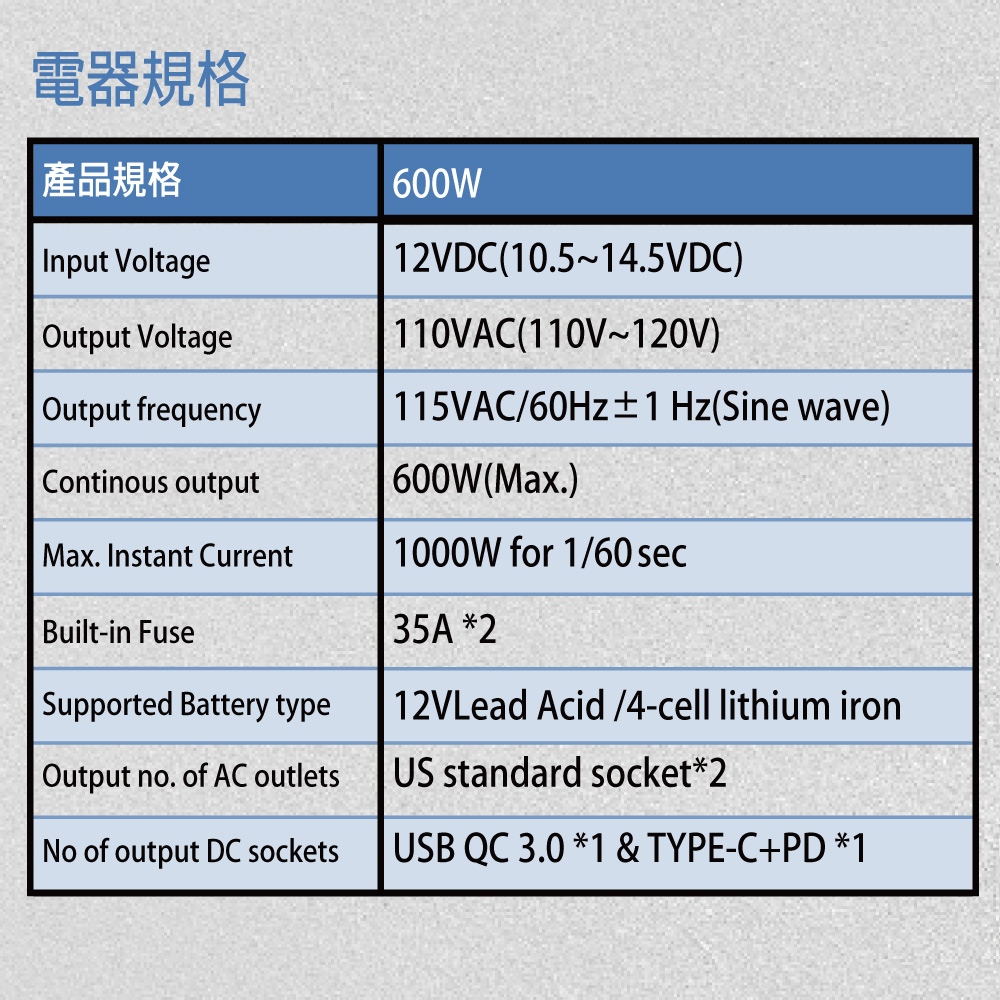

System Specification

* Input Voltage : 12V

* Output Voltage: 110V ?60Hz±1 Hz

* Output frequency and wave type: 110VAC/60Hz±1 Hz (SINE WAVE)

* Continuous power output: 600W(Max.)

* Maximum instant current: 600w 1/60 sec

* Built-in Fuse: 35A x2

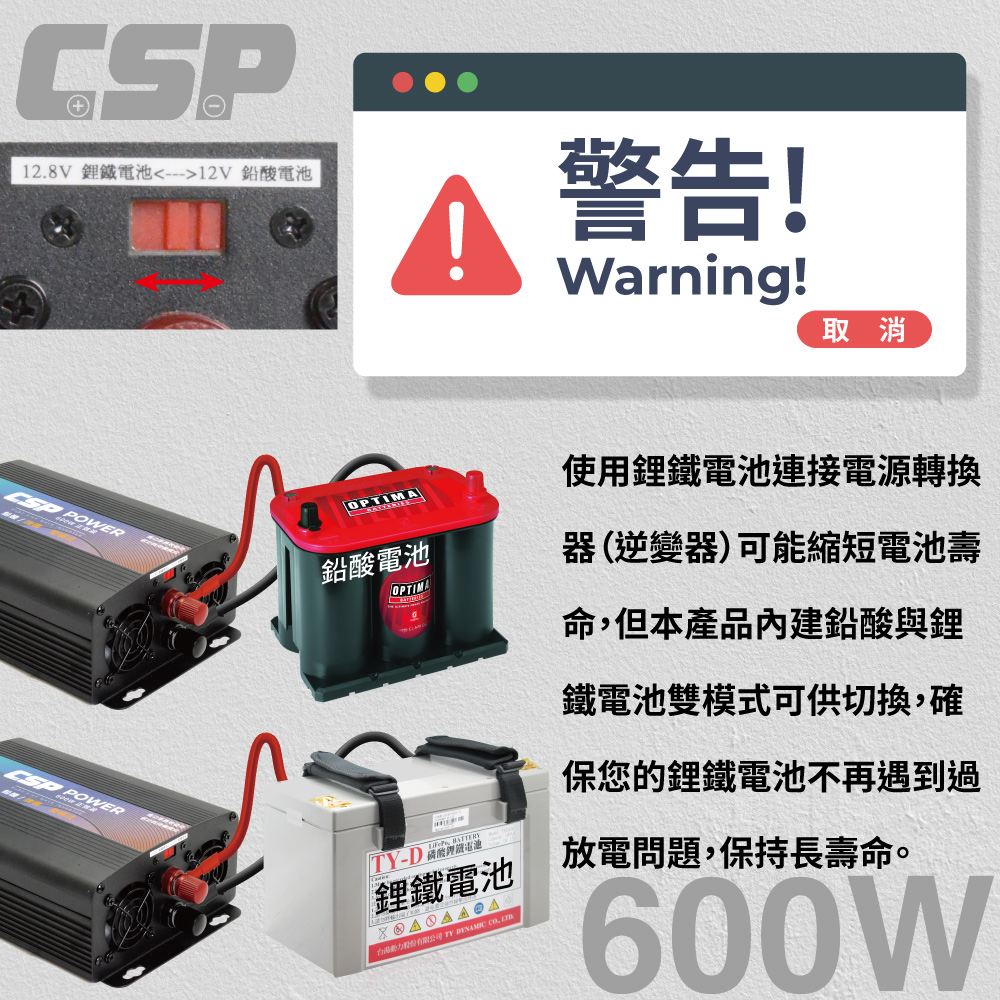

* Supported battery types: Lead-acid battery/4- lithium-iron battery

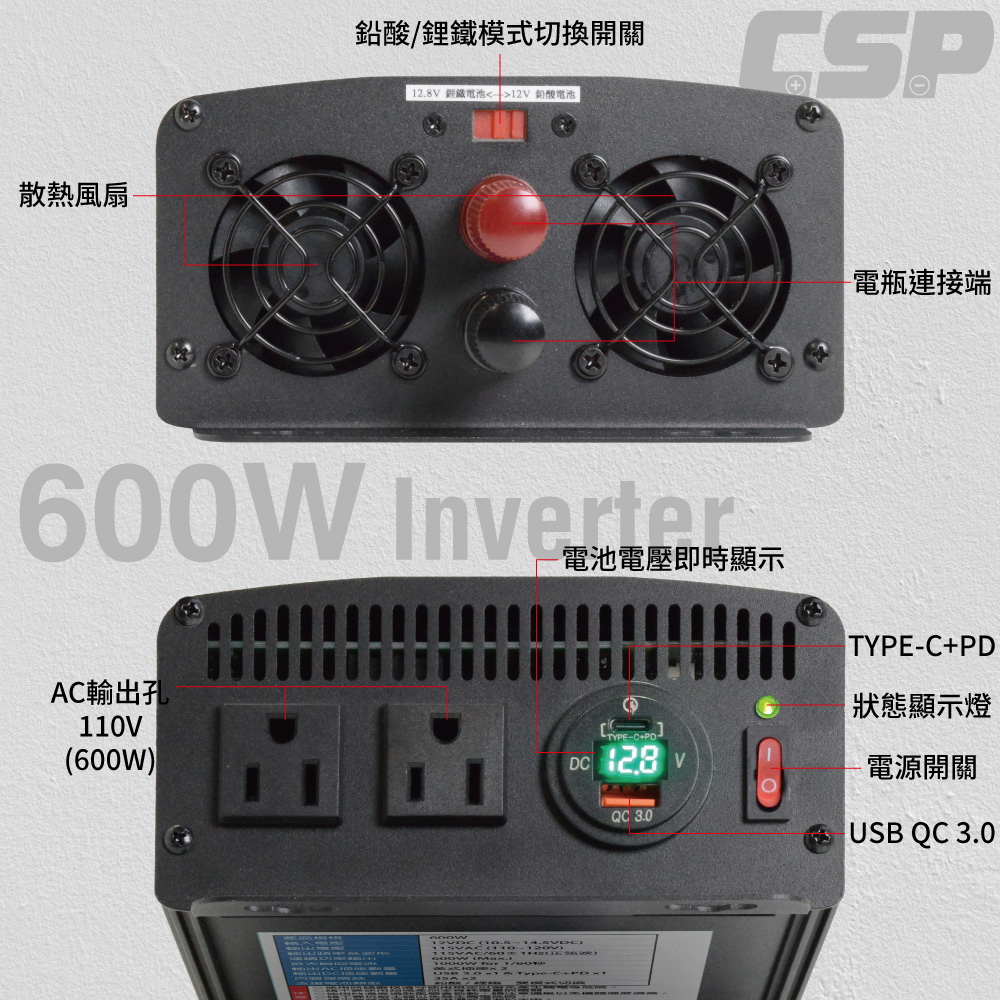

* Output Number of AC outlets: Port *2

* Output Numbers of DC sockets: USB QC 3.0 x1 & TYPE-C+PD x1

* Cooling: Intelligent fan

* Weight: 1.6 kg

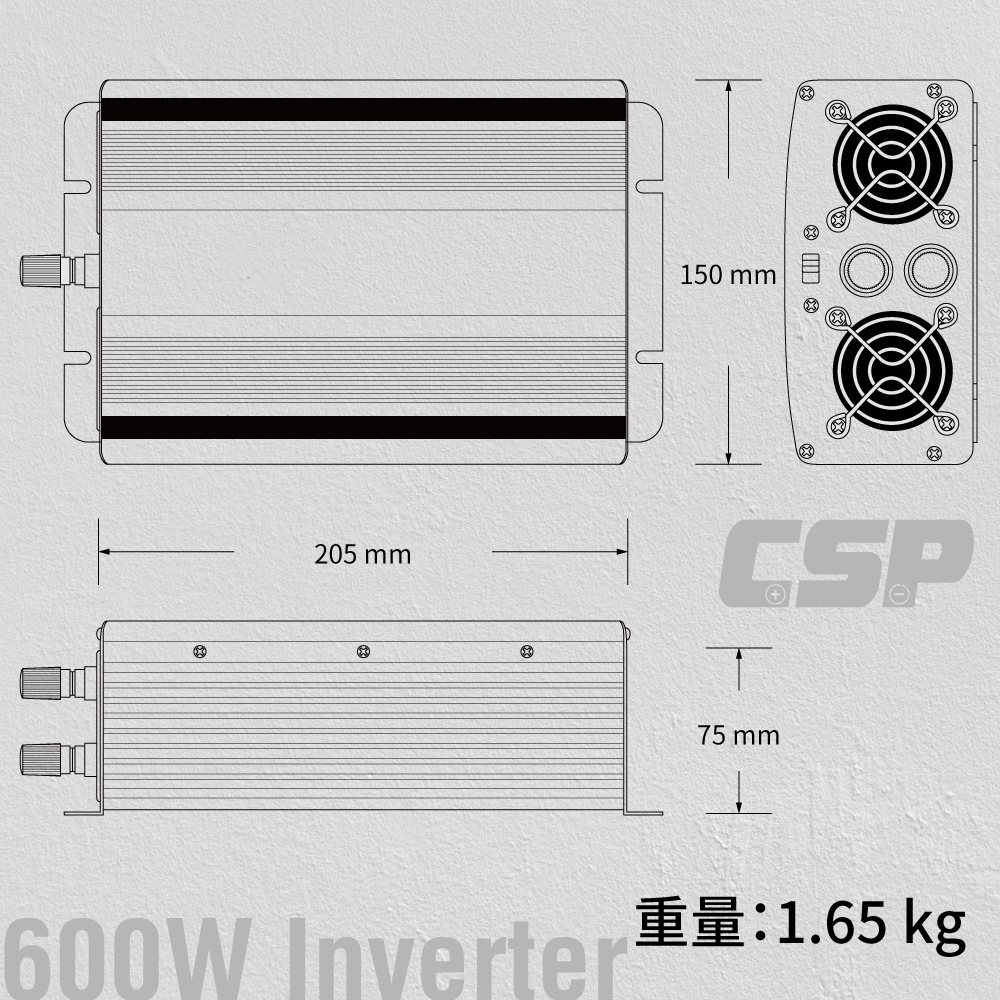

* Dimension: 205 x 150 x 75mm

PROTECTION

This power Inverter has a strong protection circuit, including overload, high temperature, low voltage, reverse polarity, etc., when the protection circuit is started, it will automatically power off, please eliminate the abnormality and then start again. Disconnect the power for a few seconds and After troubleshooting, reconnect and power on to test the inverter. The warning method is a beep and a green LED to sound and flash synchronously, and the warning method is as follows:

* Low voltage power outage: -----?-? (1 long 2 short beep)

* overload power outage: ?????? (Continuous beep)

* overheat power outage: ?----------------- (1 long beep)

* short circuit: ?-?-? (3 beep)

* High voltage: ?------?-?-? (1 long and three short beeps)

Features

* DC to AC Charger

* Microcontroller Integrated

* LED Indicators for power source

* Input & Output Fully Isolation

* Intelligent Temp & Load Cooling Fan

* Multi Pre-Alarm & Shutdown Alarm Protections: Battery Type Detection / Polarity Reverse / Low Voltage/Short Circuit / Overheat / Overload /High Voltage

* Aluminum Housing

* 100% Made in Taiwan

Precautions

* When using the car cigarette light cable, do not connect electrical appliances with a total power consumption of more than 120W.

* When using, please strictly follow the rules of use to avoid the danger of electric shock.

* Do not use electrical appliances that consume more than the power consumption of the product.

* When in use, the fan will automatically start when the temperature is overheated, please pay attention to ventilation to avoid excessive body temperature.

* Please do not disassemble the main body to avoid the risk of electric shock.

* Do not wet or soak the power converter in water.

* After use, be sure to unplug the power cable and store it properly.

* During use, each plug must be inserted into the positioning to avoid heating and sparking caused by poor contact

* During use, if you find smoke or other abnormalities, please stop using it immediately and send it for repair.

* When not in use, all power must be turned off, and the battery power cable must be removed

Product Contents

* 600W Power Converter: 1 unit

* Fixing screws: 4 pcs.

* 35A Fuse: 2 pcs

* Product Description: 1 sheet

* The following are additional products:

* Rubber connector protector: 2 (1 each in red/black)

* Battery cable: 2 (red/black)

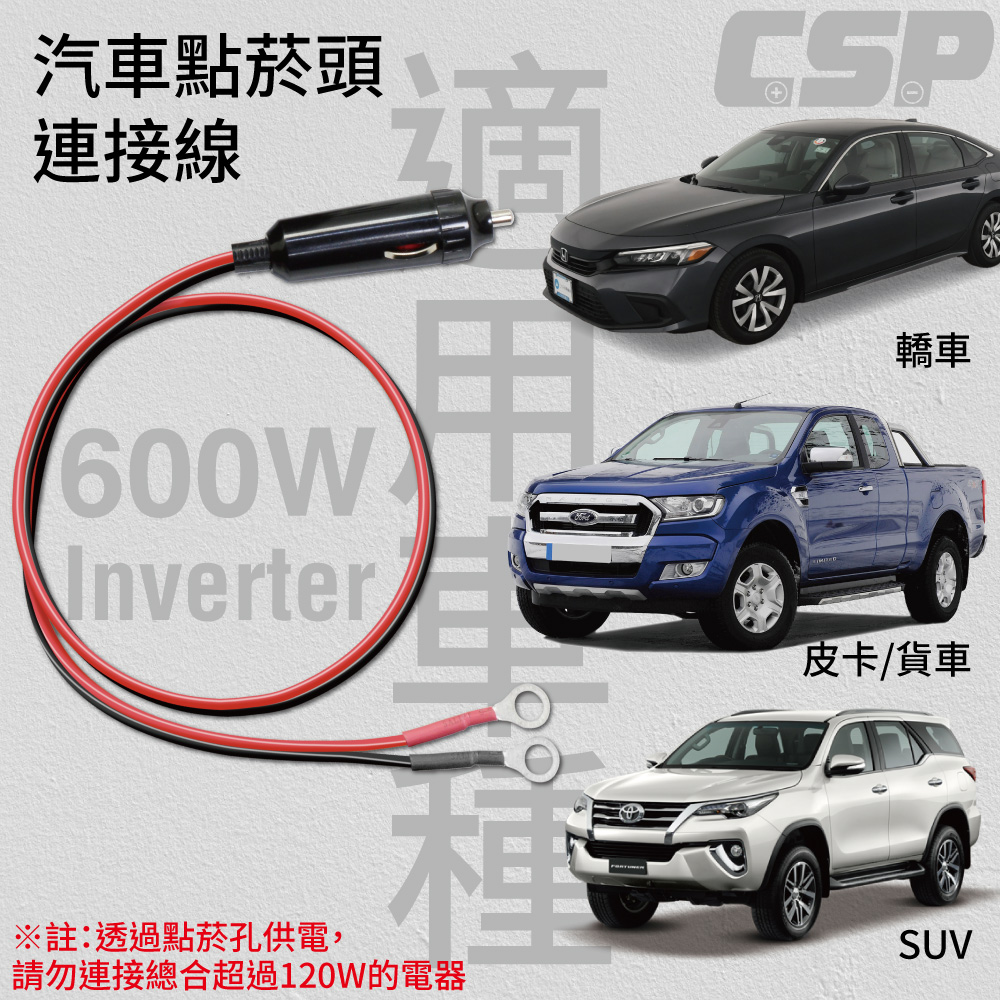

* Car cigarette light cable: 1 cable

* (Do not connect electrical appliances with a total power consumption of more than 120W when used in car)
